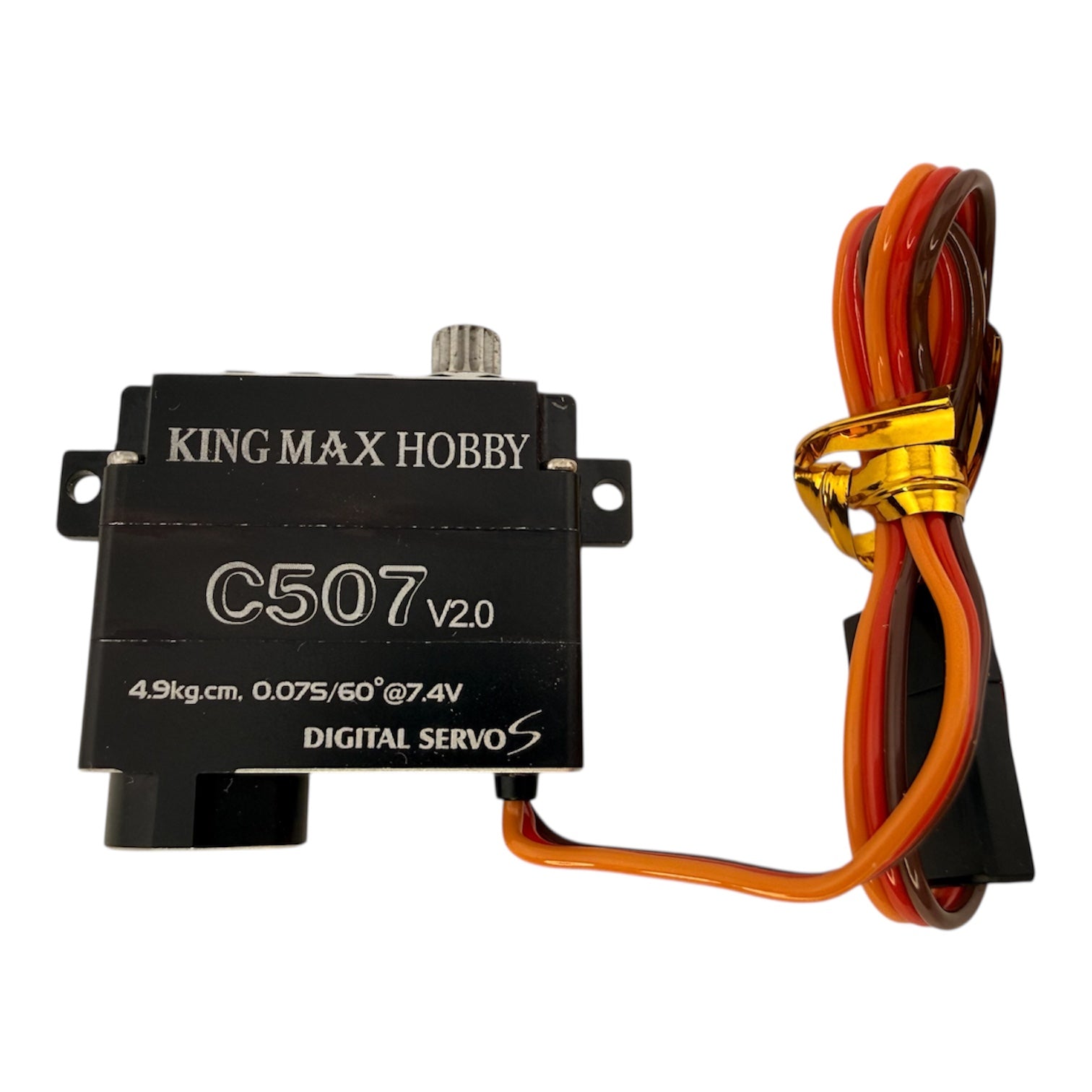

Kingmax C507 Servo

This is a Mighty-Mite of micro-servo.

The C507 is quite fast and torquey for their tiny 12 g weight

We have found these to be quite noisy so don't be alarmed as that seems to be "normal" for them.

Like all servos offered by Turnabot, these are extremely hard to hurt with normal usage.*

SPECIFICATIONS:
@8.4 volts:
Speed: 0.06 sec / 60°
Torque: 2.3 kg.cm

@7.4 volts:
Speed: 0.07 sec / 60°
Torque: 2.1 kg.cm

@6.0 volts:
Speed: 0.08 sec / 60°
Torque: 1.9 kg.cm

@5.0 volts:
Speed: 0.10 sec / 60°
Torque: 1.6 kg.cm

Dimensions: 23.5 x 8 x 20mm
Weight: 12 g

(*Many cheaper servos will burn out after only a few seconds of "hard-stalling" and often die after only a few minutes when very lightly stalled. These servos will put up with some stalling for entire battery packs.*

*PLEASE NOTE* stalling them will make them HOT. Unlike cheap servos they survive a lot of abuse, but please be aware that they can become uncomfortably hot to touch. It is still best to avoid stalling them as much as possible (it also uses a lot of battery energy to stall them).
