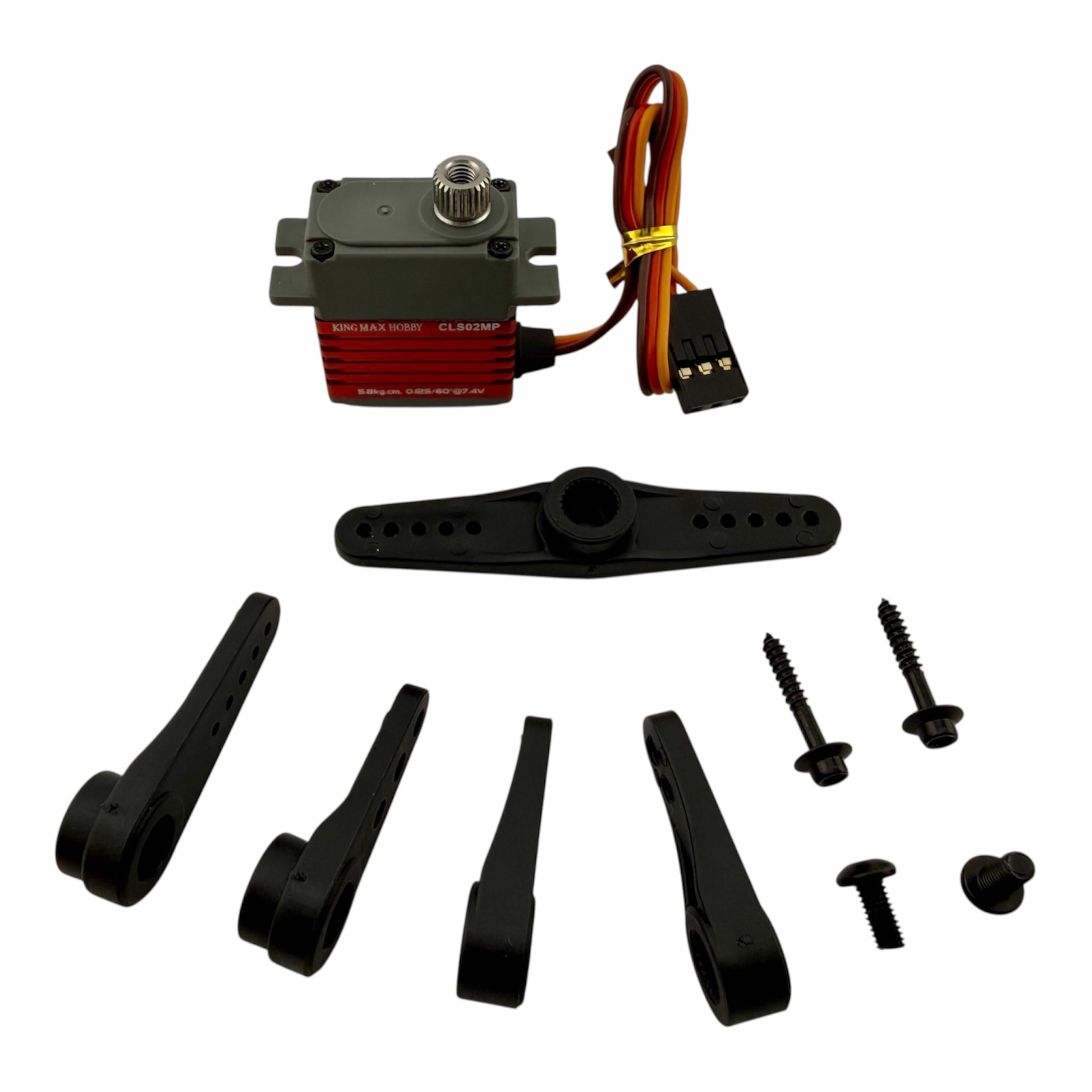

Kingmax CLS02MP Servo

This is a unique servo, it’s lighter than most other servos of this size, it has a “full size” horn, and it’s stall protected. These stall protected servos will “sleep” if you hard stall them with the stick not moving for more than 3 seconds. As soon as you move the stick again it “wakes up” and keeps working. This tends to help them run cooler under abusive conditions.

We have found these to be quite noisy so don't be alarmed as that seems to be "normal" for them.

Like all servos offered by Turnabot, these are extremely hard to hurt with normal usage.*

SPECIFICATIONS:
@8.4 volts:
Speed: 0.10 sec / 60°
Torque: kg.cm ( oz.in)

@7.4 volts:
Speed: 0.sec / 60°
Torque: kg.cm (oz.in)

@6.0 volts:
Speed: 0.sec / 60°
Torque: kg.cm (oz.in)

@5.0 volts:
Speed: 0.19 sec / 60°
Torque: 4.00 kg.cm (oz.in)

Dimensions: 23x12x27.5 mm / 0.91x0.47x1.07 in
Weight: 20.3 g (0.72oz)

*Many cheaper servos will burn out after only a few seconds of "hard-stalling" and often die after only a few minutes when very lightly stalled. These servos will put up with some stalling for entire battery packs.*

*PLEASE NOTE* stalling them will make them HOT. Unlike cheap servos they survive a lot of abuse, but please be aware that they can become uncomfortably hot to touch. It is still best to avoid stalling them as much as possible (it also uses a lot of battery energy to stall them).

FEATURES:
-- Programmable high performance metal gears mini digital servo
-- High quality coreless motor
-- Dual ball bearings
-- Potentiometer Drive: Direct Drive
-- Connector Wire Length: JR320 mm (12.48in)
