Malenki Nano Original - NOT Integrated

The Malenki-Nano has been updated to the Malenki-Nano-Integrated. There are a lot of links directly to this item, so we'll keep this one active. Please click below to go to the improved Malenki-Nano-Integrated:

click here for the Malenki-Nano-Integrated

Developed by the amazing Mark R. to give all of us everything we could ask for in a TINY, affordable, easy-to-use Receiver-ESC combo device. Turnabot is thrilled to partner with Mark and produce the Malenki-Nanos for use in the Americas.

Utilizing AFHDS2A radio protocol it works with many FlySky and Turnigy transmitters. (Please be aware that AFHDS is NOT the same as AFHDS2A)

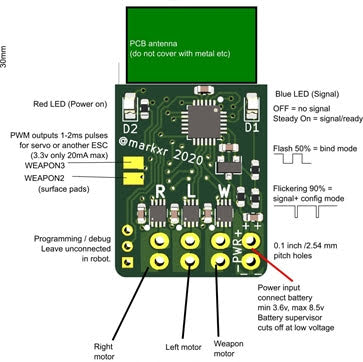

It has THREE brushed ESCs (so it's technically a Triple-ESC / TESC) and two PWM output pads. Each of those pads can independently drive a servo or a brushless ESC.

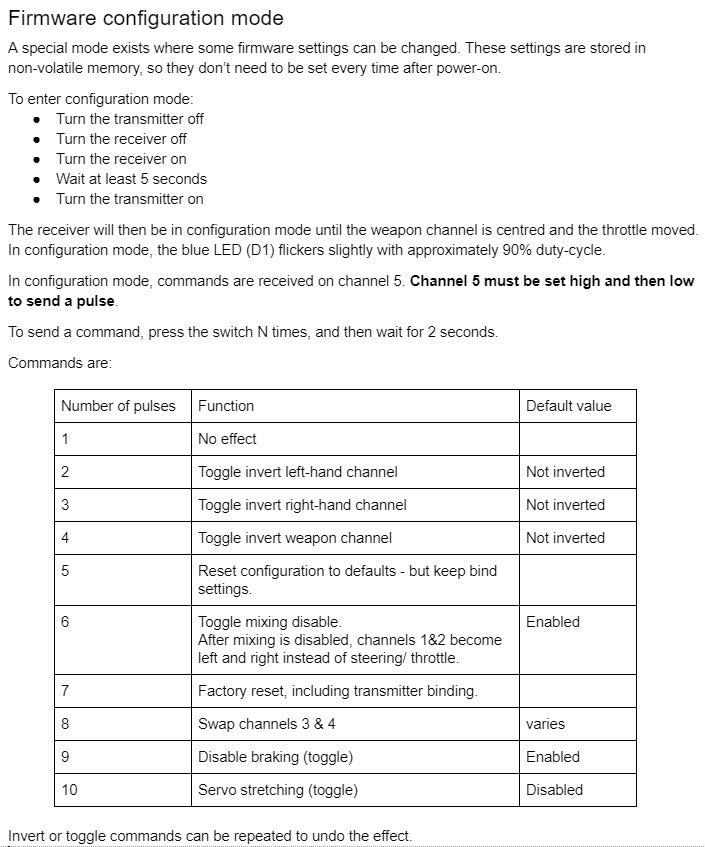

The Malenki-Nano is easily configurable by powering it on for 5 seconds before powering on the radio, then sending Hi-Low pulses on Ch 5. Configuration options include:

     Reversing either Left or Right side (different than reversing Ch 1 or Ch2)

     Disabling mixing

     Disabling braking

     Servo-stretching*

*Many servos are happy to nearly double their range of motion. Please use caution when enabling the stretcher, many servos literally go twice as far in both directions, don't let it break your linkages or mounts. Also, some servos are not happy getting signals across the new full range, you many need to reduce your endpoints to keep the servos happy.

Malenki User Documentation

Malenki Soldering Video Chapter

Malenki Configuration Video Chapter
