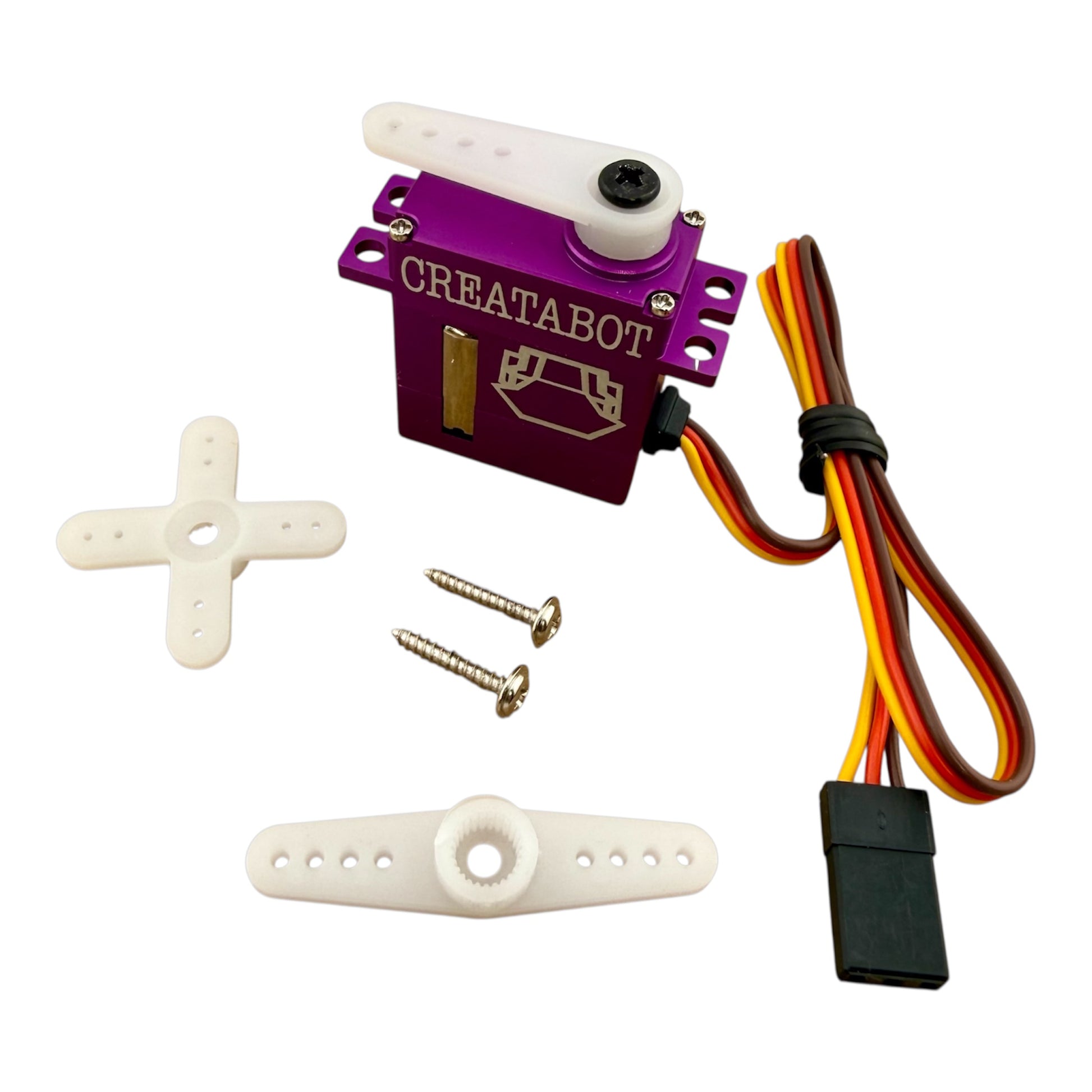

Creatabot Servo

This servo is nearly as fast and strong as the KST DS215MG and it has STALL PROTECTION!

"Hard-stalling" a powerful motor, including a "servo motor" turns the electronics into a heater circuit. "Battle-worthy" servos will often get so hot that they'll melt PLA mounts. Those servos generally survive that type of abuse, but the mounts get melted and they are rather uncomfortable to touch.

With these Turnabot / Creatabot servos, when they are "hard-stalled" with the transmitter stick not moving for more than 3 seconds it "sleeps", allowing it to cool. As soon as the sticks are moved again the servo "wakes up" and keeps working.

SPECIFICATIONS:
@8.4 volts:
Speed:  0.05 sec / 60°
Torque:  3.6 kg.cm

@4.8 volts:
Speed:  0.07 sec / 60°
Torque:  3.0 kg.cm

Dimensions: 23x12x27.5mm (LxWxH)

Weight: 20g

Operating Voltage: 4.8V - 8.4V DC

Working Pulse Width / Frequency: 1520us / 333Hz
